Aiuto esercizio elettrotecnica



1

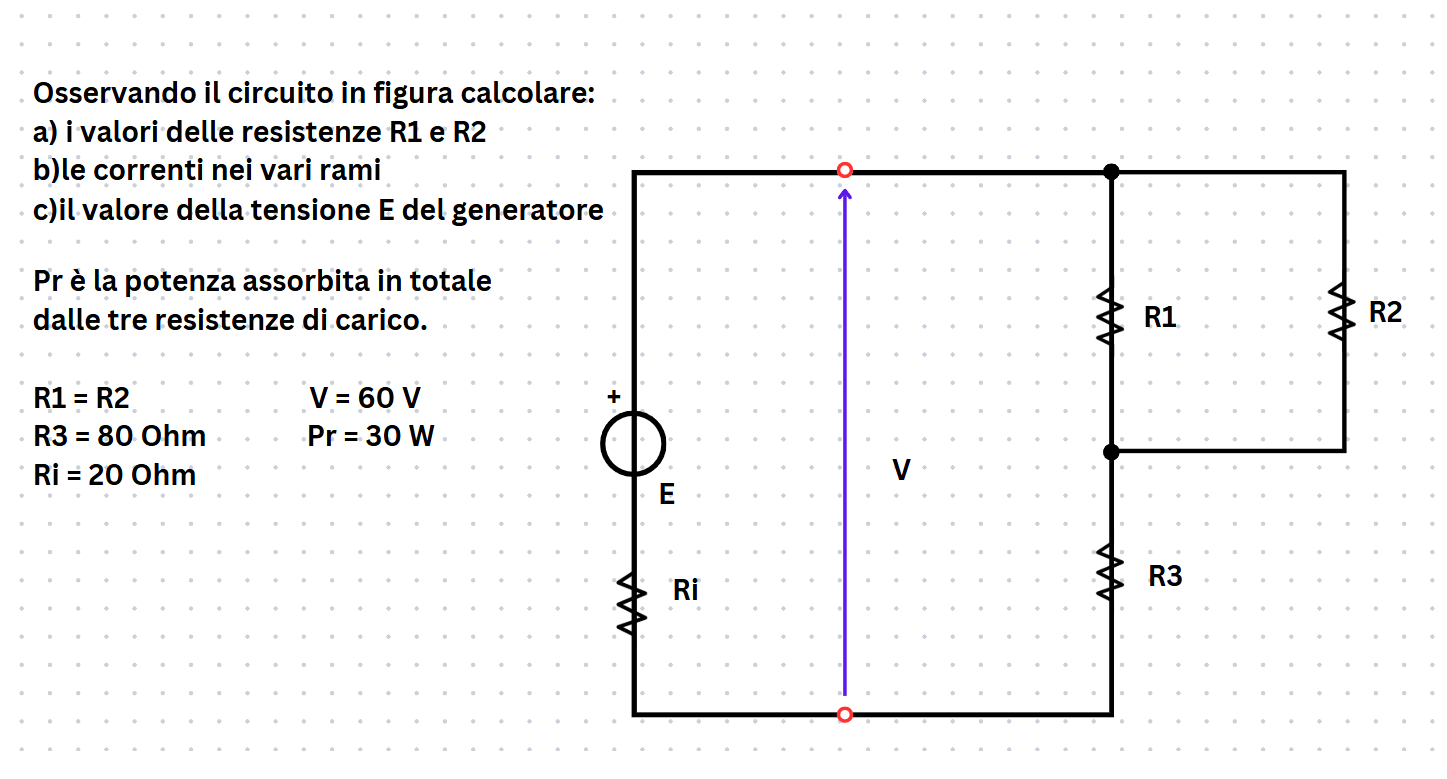

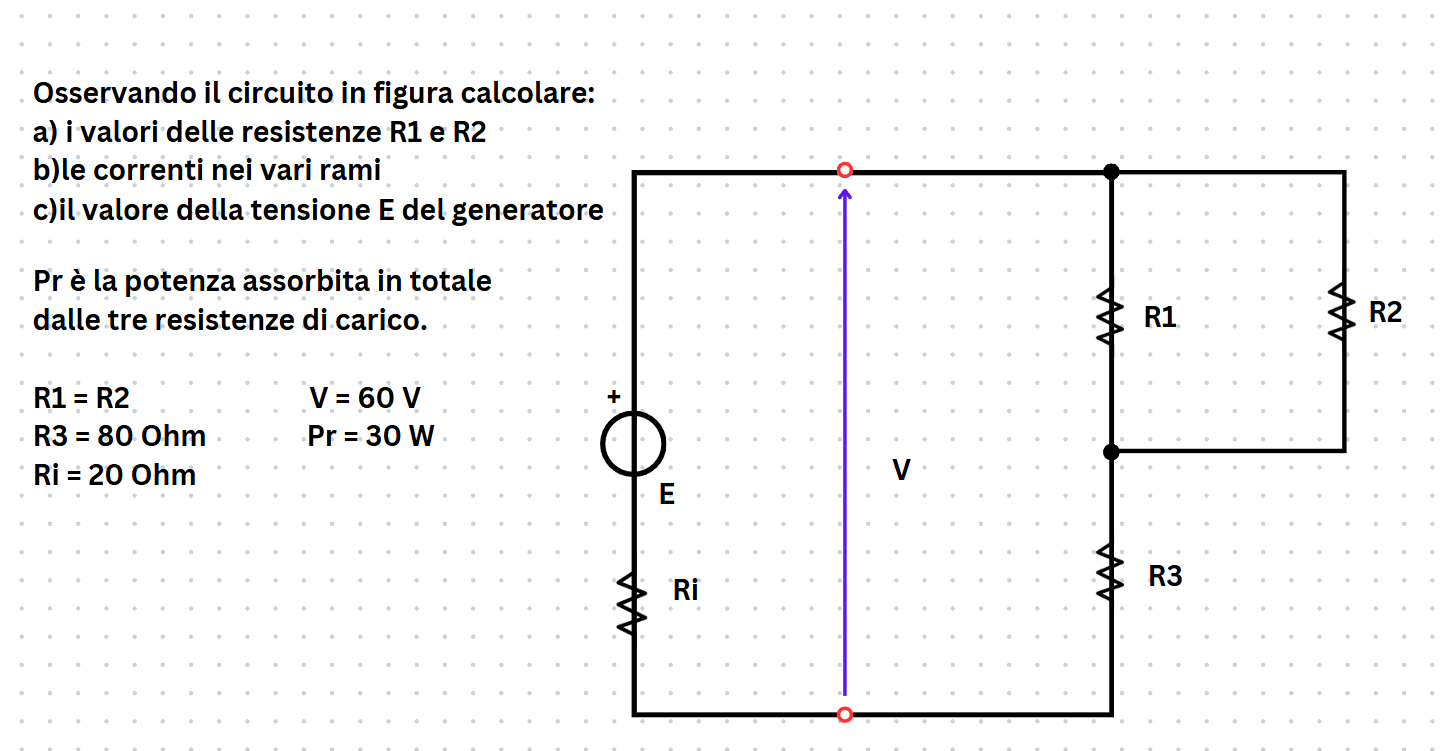

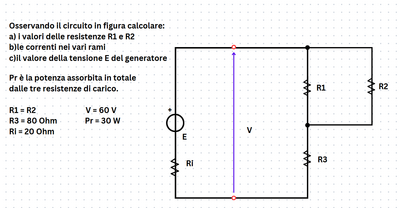

Screenshot (61)

Buon pomeriggio, potreste aiutarmi a risolvere questo esercizio?

grazie in anticipo e buona domenica

Autore
2 Risposte



3

Pr = V^2/Re

Re = V^2/p = 36/0,3 = 120 ohm = 80+R1//R2 = 80+Rp

Rp = R1//R2 = 120-80 = 40 ohm

R1= R2 = 2*40 = 80 ohm (R // R = R^2/2R = R/2 ; se R1//R2 = 40 , R1 = R2 = 2Rp)

I3 = V/Re = 60/120 = 0,5 A = I

I1 = I2 = I3/2 = 0,25 A

E = V+Ri*I = 60+20*0,5 = 70 V



@remanzini_rinaldo 👍 👍 👍



2

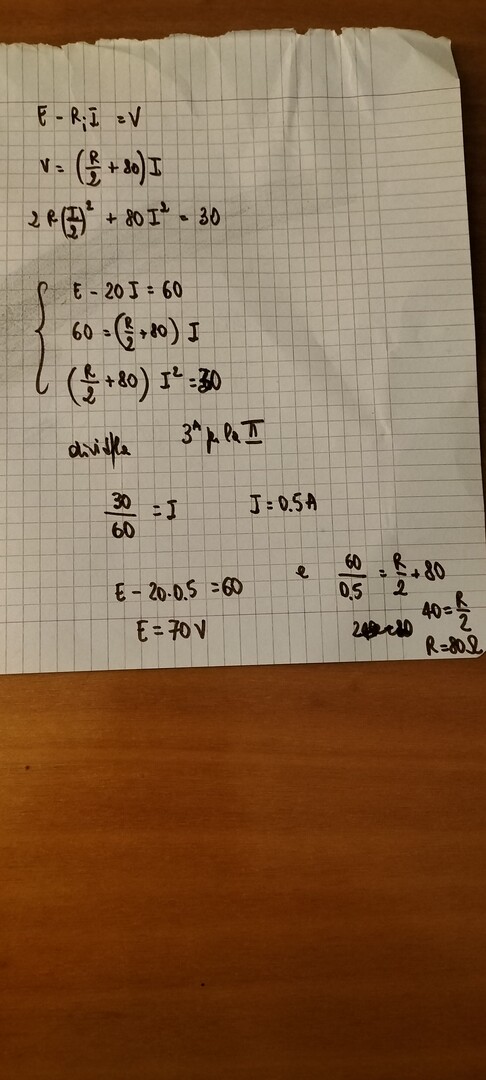

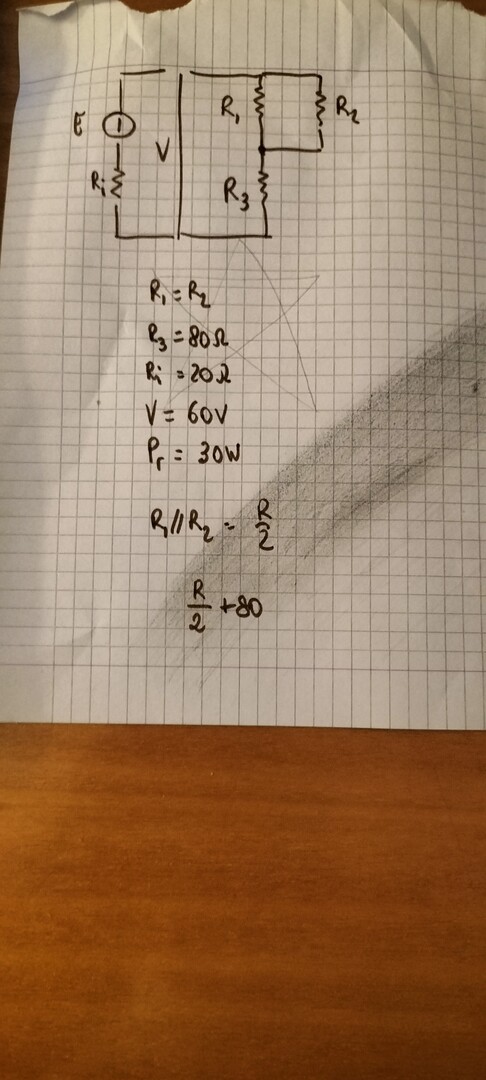

Provo a svolgerlo


@eidosm grazie mille

@eidosm 👍👌👍
